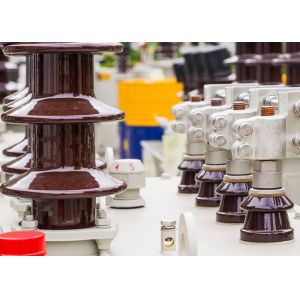

Oil immersed 250mva 220kv threephase power transformer price
Product Introduction
The performance of our S9-M ,S11-M,S13-M 10kV series full-sealed and oil-immersed
transformer conform to standards of GB1094 "Power transformer"and GB/T6451-2015 "
Specification and technical requirementsfor Oil-immersed Power Transformers".The iron
core is made of quality cold-rolled silicon steel sheet,and the
coil is made of quality
oxygen-free copper,featuring good outlook and safe running.The
product are widely used
in power transmission and distribution of industrial and
agricultural power networks.
MainTechnicalParametersfor10KVlevelS9-M,S11-M,S13-M
Seriesthree-phasefull-sealednon-excitaiton-tap-changingdistributiontransformer |
Rated
Capatty(
KVA) | High
Voltage
Kk) | HV.Tap | Low
Noltage | Connedion
Symbol | Circut
|Impendence
%) | No-loadloss(w) | On-oadloss(W) | Noloa
current
(%) |
| S9 | S11 | S13 | S9 | S11 | S13 |
| 30 | 6
6.3
10
10.5 | +5%
+2x2.5% | 0.4 | Dyn11
yyn0 | 4 | 130 | 100 | | 630/600 | 630/600 | 630/600 | 1.5 |
| 50 | 170 | 130 | 100 | 910/870 | 910/870 | 910/870 | 1.3 |
| 63 | 200 | 150 | 110 | 1090/1040 | 1090/1040 | 1090/1040 | 12 |
| 80 | 250 | 180 | 130 | 1310/1250 | 1310/1250 | 1310/1250 | 12 |
| 100 | 290 | 200 | 150 | 1580/1500 | 1580/1500 | 1580/1500 | 1.1 |
| 340 | 240 | 170 | 1890/1800 | 1890/1800 | 1890/1800 | 1.1 |
| 160 | 400 | 280 | 200 | 2310/2200 | 2310/2200 | 2310/2200 | 1 |
200
_ | 480 | 340 | 240 | 2730/2600 | 2730/2600 | 2730/2600 | 10 |
Main functions and features
Good economic
On the basis of S9 series, the no-load loss of S11-S13 series
products is reduced by 30% on
average, and the no-load current is reduced by 70%-85% compared
with S9 series.
Long service life
Transformer tank adopts fully sealed structure, which can be bolted
or welded along the tank.
Transformer oil does not contact with air and prolongs service
life.
Running high reliability
The relevant parts of tank seal are improved to increase the
reliability and improve the
technological level to ensure the reliability of seal.
Field area is small
S11-M S13-M series transormer tank adopts wave plate rador when the oil
temperaure
change corrugated plate heat bilges coldshrinklace storage cabinet
role, corrugated plate
appearance tank, cover an area of an area small
The transformer tank of S11-M and S13-M series adopt corrugated plate radiators. When the
oil temperature changes, the thermal expansion and contraction of
corrugated plate can replace
the role of oil conservation. The corrugated plate tank has beautiful appearance and occupies
small area.
Company profile
Qingdao Hengfengyou Electrical Engineering Co. , Ltd. is one of the
large-scale electric complete
sets of manufacturers in China, specializing in oil-immersed
transformers, dry-type transformers,
high-voltage Cabinets, low-voltage cabinets and substation
manufacturing specialized electrical
enterprises. The company is located in the beautiful coastal city
of china-qingdao. The company
has a registered capital of 10 million yuan, 20 senior technical
personnel, more than 500 employees,
and a sound sales and service system, annual output value of US $1
billion, the products sell well at
home and abroad.
